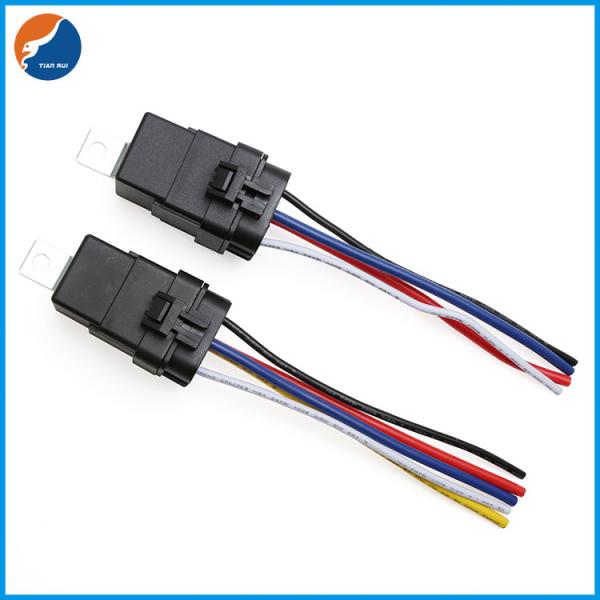

12v DC 40A 4Pin Automobile Relay Wire Waterproof Integrated Car Auto Socket

Brand Name : TIAN RUI

Model Number : B4-012-1H

Certification : ROHS

Place of Origin : China

MOQ : 500PCS

Price : Negotiable

Payment Terms : T/T, Paypal, Mastercard, Wetern Union, Alipay, etc

Supply Ability : 1000000PCS per Month

Delivery Time : 5-7 work days

Packaging Details : PE bag, Bulk

Product Name : Automotive Relay With Harness Socket

Rated Current : 40A Max

Rated Voltage : 12V 24V DC

Contact Form : Normal Open

Operating temperature : -40 to +75℃

Power : 1.8W

Insulation : 20MΩ min (at 500VDC)

Electrical Endurance : 50000

Mechanical Endurance : 10000000 （ 300 Cycles / min ）

Application : Automotive

Contact Now

Normal Open Automotive Preheat Starter Relay for Car Start and Preheating 150A 12VDC 24VDC

Coil Ratings

Coil Volt. (VDC)

Operation Volt.
( VDC)

Release Volt.
( VDC)

Coil Resistance
(1±10%)Ω

Power
(W)

 Max. Coil Volt.(VDC)
23℃ 85℃
12V ≤7.2 ≥1.2 90 1.8 20.2 15.7
24V ≤16 ≥2.4 320 1.8 40.5 31.5

Specification

Contact Contact Forms 1Z, 1H
Contact Material AgSnO2
Contact Load 40A/13.5VDC
20A/27VDC
Rating Max Continuous Current NO Contact: 60A(23℃), 40A((85℃) ,17A(125℃)
NC Contact: 45A(23℃), 30A((85℃) ,12A(125℃)
Max Switching Current ON (NO):150A
OF (NO):40A(Resistive,13.5VDC)
Min. Load 1A 6VDC
Electrical Char. Insulation Resistance 100MΩ (500VDC)
Breakdown Volt. 500VAC
Expected Life Electrical Life 1*105 Cycles
Mechanical Life 1*106 Cycles under 300 cpm

Features

* Features: 12 volt relay, 4 pin spdt automotive relay, 1 NO (normal open) and 1 NC (normal closed) design.
* Rating: This is a 12vdc relay, 30/40 amp, normal open 40A, normal closed 30A.
* Wire: The 12v relay switch includes two different gauge wires for switches and devices, 14 AWG wires for devices (red, blue and yellow) and 16 AWG wires for switches (black and white wires).
* Waterproof: There is a seal ring inside of the relay socket, which enables the 5 pin relay have better performance in
waterproof aspect, effectively improves the security of your outdoor use.

Application

Car wire Rear defogger, battery circuit breaker, air conditioner, pump, fog light, cooling fan, headlight, start-stop control.

12v DC 40A 4Pin Automobile Relay Wire Waterproof Integrated Car Auto Socket

12v DC 40A 4Pin Automobile Relay Wire Waterproof Integrated Car Auto Socket

12v DC 40A 4Pin Automobile Relay Wire Waterproof Integrated Car Auto Socket
